3 Finger Actuator: Sizing Checker And Engineering Decision Guide

Use the tool first to size required force/torque per finger, then use the report layer to choose topology (adaptive electric, pneumatic 3-point, or custom), validate assumptions, and reduce RFQ risk.

Published: 2026-05-25 · Last reviewed: 2026-05-25

Run sizing checkerView decision summaryStart RFQ
Method & evidenceComparison & risksFAQ & next actions

Tool Layer

3-Finger Actuator Fit Checker

Enter payload and contact assumptions to get required force/torque per finger, then route to the next executable path.

Recommended range: 0.05 to 25 kg.

Conservative default is μ=0.40 for mixed materials.

2.0 is a typical starting point for industrial handling.

Use 1.0 for slow transfer, 1.3+ for fast starts/stops.

Larger radius increases required actuator torque.

Vertical lift; use this as the default sizing baseline.

Empty state: enter values and click Calculate sizing.

You will get required normal force, per-finger torque, and a decision band.

Three-finger actuator module for adaptive robotic gripping

Report Layer

Decision Summary: what matters first

This section compresses the most decision-relevant numbers, who this page is for, and who should escalate to custom design immediately.

Key number

Adaptive electric envelope is mode-dependent

10-240 N

OnRobot 3FG15 datasheet v2.0: flexible grip caps at 140 N, normal grip reaches 240 N [S2].

Key number

Grip physics changes payload logic

2.5 kg vs 10 kg

Robotiq manual lists 2.5 kg fingertip and 10 kg encompassing recommendations at mu=0.6, SF=2 [S3].

Key number

Pneumatic 3-point can exceed adaptive force

87-750 N

Festo DHDS datasheet shows 87-750 N total closing force at 6 bar (sizes 16/32/50) [S5].

Key number

Cell-level safety baseline

ISO 10218-2:2025

Robot-cell integration and end-effector hazards are validated at application level in ISO 10218-2:2025 [S7].

Key number

Utility stack is topology-gated

24 V vs 2-8 bar

Electric options here run on 24 V class supply, while pneumatic DHDS requires 2-8 bar compressed air to ISO 8573-1:2010 [7:4:4] [S2, S3, S5].

Key number

Lifecycle claims are model-specific

1M to 5M cycles

Robotiq pads/fingertips are consumables after max 1 Mio. cycles, while OnRobot and SCHUNK publish separate cycle/warranty envelopes [S2, S3, S4].

Suitable when

  • Cylindrical or near-cylindrical parts that benefit from 3-point centering.
  • Mixed SKU handling where one gripper must tolerate diameter variation.
  • Cells where engineering can validate finger pad and contact geometry early.
  • Programs that need topology pre-screening before deciding electric vs pneumatic vs custom.

Not suitable when

  • Ultra-fragile surfaces requiring force feedback below catalog force floor.
  • Very high acceleration transfer with limited contact area and low friction.
  • Large off-center inertia that creates high jaw moment under motion.
  • Unknown part surface condition where friction varies lot-to-lot.

Methodology and evidence

Tool results are only useful if assumptions are explicit. This layer documents model choices and data sources so teams can reproduce decisions, with standards boundaries and unresolved evidence explicitly marked.

Evidence update: 2026-05-25

Review cadence: every 6 months or when core vendor datasheets are revised.

First-pass sizing modelF_total ≥ (m × g × orientation × dynamic × SF) / μPer-finger force = F_total / 3 · Per-finger torque = F_finger × jaw radiusUse as screening logic before bench validation. Not a substitute for slip and fatigue testing.1. Input assumptionsPayload, μ, SF, radius2. Compute force/torqueF_total, F_finger, T_finger3. Route next actionCatalog vs custom path
Model parameterSettingWhy it exists
Force modelF_total >= (m * g * orientation * dynamic * SF) / μConverts payload risk into required normal force under friction hold.
Finger splitPer-finger force = F_total / 3Three contacts are assumed to share normal force evenly in first pass.
Torque conversionT_finger = F_finger * rMaps force to actuator demand by jaw radius from pivot axis.
Safety factor default2.0Practical starting value for early RFQ before full test evidence.
Grip-physics boundaryThis model targets friction-dominant fingertip gripRobotiq documents that encompassing stability is no longer friction-driven.
Catalog force boundaryForce varies by finger angle, diameter, and grip modeOnRobot force charts and notes show angle/current/material dependencies.
Boundary policyMid-band => dual-track RFQ, out-of-range => custom sizing pathPrevents false confidence from single-catalog matching.
Model boundary and counterexample map
Boundary topicVerified signalRequired action
Grip physicsRobotiq manual distinguishes fingertip (friction-dependent) vs encompassing (not primarily friction-dependent) stability.Use this checker for fingertip-dominant cases; re-run with lower μ and verify if encompassing fixture can be applied.
Force window interpretationOnRobot states force depends on finger angle, diameter, current limits, and material friction.Do not treat catalog max force as constant across all diameters and motions.
Geometry offset sensitivityOnRobot warns finger offset >0.5 mm at first contact can overload motor and gear.Add fixture concentricity checks and finger-runout measurement before pilot.
Finger length and inertiaSCHUNK publishes max finger length/mass limits; Robotiq and OnRobot provide custom finger constraints.For long/custom fingers, demand static/dynamic load calculations and proof test records.
Utility and environment envelopeElectric and pneumatic options require different utilities; Festo also excludes aggressive media/welding spatter/grinding dust.Treat utility and environment fit as first-pass gating criteria before comparing force tables.
SourceSignal usedDateReference
S1OnRobot 3FG15 product pagePositions this model for cylindrical parts and diameter variation in 3-finger topology.Reviewed 2026-05-25Open source
S2OnRobot 3FG15 datasheet v2.0Force 10-240 N (10-140 N flexible), 20-25 V supply, IP67, warranty 3 years or 3,000,000 cycles, torque limits for custom fingers.Version label v2.0, reviewed 2026-05-25Open source
S3Robotiq 3-Finger instruction manual (official PDF)Payload split (2.5 kg fingertip vs 10 kg encompassing), 24 V control, 0.05 mm repeatability, and consumable-life warning for pads/fingertips.Manual revision 2021-06-17, reviewed 2026-05-25Open source
S4SCHUNK EGU 70 EI-M-B technical details650-1,950 N force, 70 mm stroke per jaw, IP67 electronics with IP40 guide/base jaws, and 24-month cycle-based warranty terms.Reviewed 2026-05-25Open source
S5Festo DHDS three-point gripper datasheetTotal closing force 87-750 N at 6 bar, 2-8 bar operating pressure, ISO 8573-1:2010 [7:4:4] compressed-air requirement, and environment cautions.Reviewed 2026-05-25Open source
S6ISO 10218-1:2025Edition 3 (2025-02). Defines robot-as-machine safety scope and explicit non-applicable domains.Published 2025-02Open source
S7ISO 10218-2:2025Edition 2 (2025-02). Covers integration/commissioning/operation/maintenance/decommissioning for robot applications and cells.Published 2025-02Open source
S8ISO/TS 15066:2016Collaborative-operation supplement to ISO 10218; ISO lifecycle marks 90.92 (to be revised, 2025-06-26) and indicates replacement by ISO/AWI 15066-1 under development.Published 2016-02; lifecycle checked 2026-05-25Open source
S9ISO 12100:2010Risk assessment and risk reduction methodology for machinery safety lifecyclePublished 2010-11; last confirmed 2022Open source
S10OSHA 29 CFR 1910.212Requires point-of-operation guarding and machine-area protection using one or more guarding methods.Accessed 2026-05-25Open source

Core conclusions reference these IDs (for example, [S2], [S5], and [S7]) so procurement and engineering teams can verify each claim quickly.

Compliance boundary for engineering decisions
FrameworkWhat it coversDecision impact
ISO 10218-1:2025Defines robot-level safety; integration and application hazards are handled in ISO 10218-2.Catalog matching is only a start. Cell-level safeguards and misuse analysis still required.
ISO 10218-2:2025Covers design/integration/commissioning/operation/decommissioning of robot cells and integrated components.If your scenario falls into excluded domains (public access, lifting people, explosive environment), this page output is non-decisive.
ISO/TS 15066:2016Supplement for collaborative operation; currently marked as to-be-revised by ISO lifecycle status.For human-robot shared spaces, verify latest revision path before locking force/pressure criteria.
OSHA 1910.212(a)(1)-(3)Requires guarding for point-of-operation and machine hazards in U.S. workplaces.End-effector selection must include guard/interlock concept, not only force sizing.
Evidence gaps (explicitly unresolved)
Open questionCurrent statusMinimum executable fallback
Continuous-duty thermal derating curves at max forceNo reliable public curve found for all compared models (checked 2026-05-25).Request vendor thermal derating data by duty cycle, ambient temperature, and supply current before PO.
Public fatigue life for custom finger geometriesVendors provide baseline limits but not universal fatigue life for arbitrary custom fingers.Define minimum life test protocol (cycles, load profile, failure criteria) in RFQ.
Site-specific friction drift across production lotsNo transferable public dataset for your exact material/pad contamination pair.Create incoming QA friction sampling and attach lower-bound μ to the sizing worksheet.
Cross-vendor public pricing and lifecycle TCONo reliable apples-to-apples public pricing dataset (some catalogs are login-gated and utility costs are site-dependent).Build a should-cost sheet from vendor quotes, consumables, utility tariffs, and maintenance interval assumptions.
Final publication date for ISO/AWI 15066-1ISO lifecycle confirms replacement work is under development, but no final publication date is publicly fixed (checked 2026-05-25).Use current ISO/TS 15066 + ISO 10218-2 criteria now, and add a standards-delta review gate before commissioning sign-off.

Comparison and risk tradeoffs

Compare options using reproducible dimensions: force, stroke, retention behavior, utility/environment requirements, use-case fit, and known limitations.

OptionPayloadForce rangeStrokePower-loss / retentionUtility / environmentBest fitKnown limits
OnRobot 3FG15 (adaptive 3-finger)Force-fit 10 kg; form-fit 15 kg10-240 N (10-140 N flexible)External up to 152 mm, internal up to 176 mmBrake holds grip on power loss20-25 V supply, 43-1500 mA, IP67Mixed-diameter handling with self-centering topologyForce and speed depend on finger angle, diameter, and friction/material pair
Robotiq 3-Finger (adaptive 3-finger)2.5 kg fingertip, 10 kg encompassingActuation 40 N pinch equivalent, 100 N break-away0-167 mm opening, 155 mm max encompassing diameterSelf-locking raises break-away force over actuation24 V DC +/-10%, 1 A peak, up to IP67Best when geometry supports encompassing gripFingertip stability is friction-sensitive; object detection can miss thin parts
Festo DHDS (pneumatic 3-point, example range)N/A (force and geometry led)87-750 N total closing force at 6 bar (model dependent)N/A (model-specific)Depends on pneumatic circuit and pressure-hold strategy2-8 bar compressed air, ISO 8573-1:2010 [7:4:4]High-force gripping with simple on/off valve controlForce depends on pressure/lever arm and this model is not designed for aggressive media, welding spatter, or grinding dust.
SCHUNK EGU 70 (parallel electric gripper)N/A (force-driven selection)650-1,950 N70 mm per jaw80-100% gripping-force maintenance version available24 V, 6 A peak, IP67 electronics + IP40 guide/base jawsHigh-force tasks with predictable parallel-jaw contactNot a 3-finger topology; finger length and mass limits strongly constrain setup
Custom 3-finger actuator moduleDefined by test planN/A until validatedCustomDepends on brake/mechanism architectureDefined by custom power/air/sealing architectureOut-of-range scenarios or special geometry requirementsHigher integration, safety, and lifecycle validation effort
ImpactProbability
RiskProbabilityImpactMitigation action
Slip during acceleration spikesMedium-HighHighIncrease friction certainty, validate dynamic multiplier with motion trace data.
Torque underestimation from long fingersHighHighMeasure real jaw radius and include finger mass/inertia in the model.
Catalog force misread as safe payloadMediumHighMap force to part geometry and friction, not only to payload headline.
Unstable pad friction in productionMediumMedium-HighRun lot-level friction checks and define replacement intervals (Robotiq pads are consumables).
Safety scope mismatch with actual deploymentMediumHighMap application scope against ISO 10218-2 exclusions and run ISO 12100-style hazard review.
Utility mismatch (power/air) discovered after shortlistMediumHighLock 24 V power budget or 2-8 bar air + ISO 8573-1 class at RFQ gate before model comparison.
Ingress and environment mismatch in dirty cellsMediumMedium-HighMap IP and media limits to real coolant/dust exposure, then require contamination test evidence before PO.
Pre-PO execution gates (decision-critical and source-backed)
GateVerified evidenceFailure mode if skippedMinimum action now
Utility envelope locked before RFQOnRobot lists 20-25 V supply; Robotiq uses 24 V DC; Festo DHDS requires 2-8 bar compressed air to ISO 8573-1:2010 [7:4:4].Comparisons become non-reproducible when electric and pneumatic assumptions are mixed after vendor shortlist.Freeze power and air boundary assumptions in one worksheet before requesting quotes.
Environment and ingress fit checkedFesto DHDS excludes aggressive media, welding spatter, and grinding dust; SCHUNK splits IP67 electronics and IP40 guide/base jaws.Early pilot passes can fail in production when contamination and cleaning cycles differ from lab setup.Add contaminant and wash-down scenario to verification plan before final supplier lock.
Lifecycle and consumables clarifiedOnRobot publishes 3 years or 3,000,000 cycles warranty; SCHUNK publishes 24 months with cycle windows; Robotiq flags pads/fingertips as consumables after max 1 Mio. cycles.Maintenance cost can dominate total cost when consumable replacement intervals are not budgeted.Request cycle-test protocol and consumable replacement plan as mandatory RFQ attachment.
Safety standard scope alignedISO 10218-1/2 list non-applicable domains (e.g., public access, lifting people, explosive environments); ISO/TS 15066 is marked to be revised.A numerically good sizing result can still be non-compliant for the deployment context.Run ISO 12100 hazard analysis and maintain a delta review checkpoint for the ISO/AWI 15066-1 transition.

Need a fast mid-project RFQ checkpoint?

If your force/torque result is near boundary, send assumptions now and lock a validation path before pilot tooling is frozen.

Refine inputsSend RFQ baseline

Scenario examples and boundary behavior

Each scenario maps assumptions to an action path, so the team can decide quickly without skipping validation.

Scenario A: metal sleeve transfer

Assumption: 2.5 kg part, μ=0.35, dynamic=1.25, radius=22 mm.

Process: Checker result lands in review band; move to pad upgrade + slip test.

Output: Run electric-adaptive and pneumatic 3-point in parallel, then lock by slip test plus cycle-time fit.

Scenario B: polymer cap kitting

Assumption: 0.8 kg part, μ=0.6, dynamic=1.0, radius=16 mm.

Process: Checker result lands in good-fit band with safety margin.

Output: Catalog adaptive 3-finger is usually enough; decide electric versus pneumatic by control and cleanliness requirements.

Scenario C: off-center cast part

Assumption: 4.2 kg with eccentric center of mass and quick repositioning.

Process: Result often jumps to out-of-range due torque demand.

Output: Switch to custom 3-finger module or redesign fixture/orientation path.

Scenario D: polished surface uncertainty

Assumption: Measured μ varies from 0.2 to 0.5 across batches.

Process: Run worst-case input to set lower bound before RFQ.

Output: Use conservative SF and define friction re-test checkpoint in QA plan.

Scenario E: collaborative cell with human exposure

Assumption: Sizing result is good-fit, but shared-workspace force/pressure limits are not validated yet.

Process: Treat checker output as preliminary only and move to ISO 10218-2 + ISO/TS 15066 assessment path.

Output: Decision stays pending until safety validation evidence is complete.

Reference product visuals

Electric three-finger actuator option for precision handling
Electric three-finger actuator option for precision handling

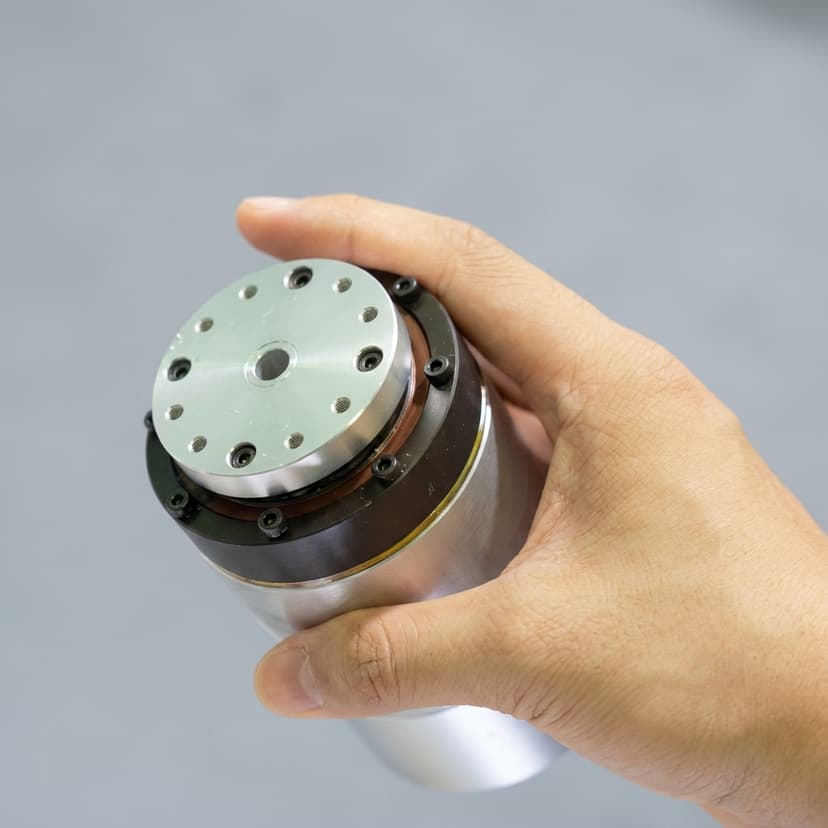

Micro planetary gear motor used in three-finger actuator joints
